Working Principle

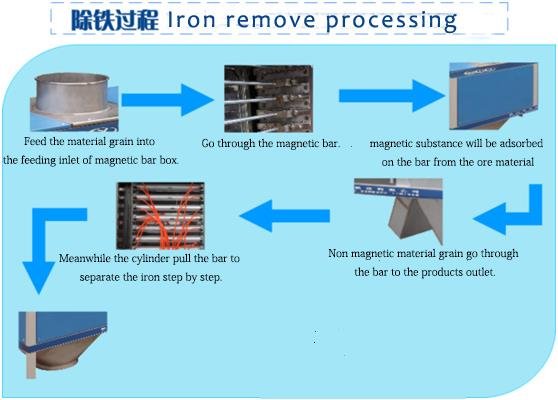

How the automatic drawer magnetic separator works
- Mineral grains are fed into the mouth of the magnetic bar box. When the mineral particles go through the permanent magnetic bar in the magnetic box, magnetic materials in the mineral grains are absorbed on the bar due to magnetic force.
- Non-magnetic mineral grains discharge from the discharging mouth while the cylinder device pulls the permanent magnetic bar layer by layer.
- Ferromagnetic material absorbed on the permanent magnetic bar automatically separates from the mouth of iron removal, ensuring continuous operation without stopping the feeding process.
Key Advantages
Why choose our automatic drawer magnetic separator
High Magnetic Intensity
Magnetic intensity above surface field strength reaches up to 12000GS at 25mm diameter, ensuring effective separation of magnetic materials.
Automatic Iron Discharging
Cylinder layer pulls magnetic bars automatically, causing magnetic material adsorbed on magnets to fall off without manual intervention.
Continuous Operation
Gradually pumped iron material allows the system to continue working without suspending feeding, maximizing productivity.
Flexible Installation
Both ends of the magnet can be customized with threaded holes, ***** holes, rings, or conical tips for convenient installation in various setups.
Multi-Layer Design
5-layer configuration provides multiple separation stages for higher purity output and more efficient iron removal.
Stainless Steel Construction
Durable stainless steel body resists corrosion, ensures long service life, and maintains hygiene in processing environments.
